Cost Effective Optima Lenses for Collimating and Focusing Laser Diodes

Collimating and focusing a laser diode is perhaps the most critical prerequisite in any laser diode application. While the characteristics of a laser diode might be ideal for your application, the laser diode must be matched with the appropriate optics to create a useable beam. Typically, the laser diode is collimated with one lens and a second lens is used to focus the beam. However, many applications exist where a single lens is used to either focus or collimate the beam. In either case, most laser diodes require a collimating lens with a large numerical aperture (NA) to efficiently capture the widely divergent perpendicular axis.

Optima manufacturers the following laser diode lenses and laser diode optics:

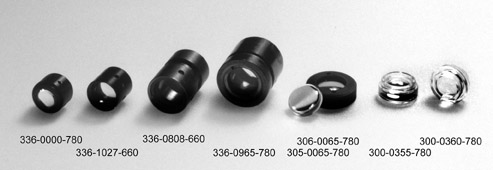

Multiple Element Collimating and Focusing Lenses
Molded Glass Aspheric Lenses
Injection Molded Plastic Aspheric Lenses
Achromats, Doublets, Plano-convex, Plano-concave, etc....

pdf.gif (231 bytes) LD_OPTIC.PDF (179K) Click on the file name to download an Adobe PDF file covering multi-element lenses,
molded glass aspheric lenses, and injection molded plastic aspheric lenses.
pdf.gif (231 bytes) MULTIELE.PDF (160K) Click on the file name to download an Adobe PDF file covering only multi-element lenses.
pdf.gif (231 bytes) MOLDED.PDF (66K) Click on the file name to download an Adobe PDF file covering only molded glass aspheric lenses.
pdf.gif (231 bytes) PLASTIC.PDF (67K) Click on the file name to download an Adobe PDF file covering only injection molded plastic lenses.
